SIL Study 란?

대상 장치나 제품의 SIL(Safety Integrity Level;안전 무결성)상태를 확인 하기 위하여 SIL Assessment 를 수행하고 SRS(Safety Requirements Specification)보고서를 작성하고 SIL Verification 활동을 수행하는 것을 말합니다. SIL Study 방법은 LOPA(Layer of Protection analysis) 기법과 QRA(Quantitative Risk Analysis) 기법을 사용합니다.

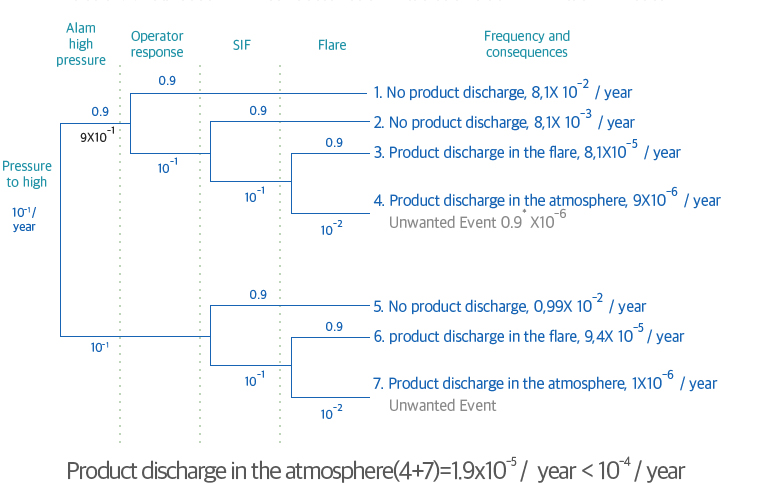

LOPA 기법

QRA 기법

SRS 보고서 사례

SIS ID :

SIS-x-L0XXX

Service :

xxxx  Compressor Suction Scrubber LL level  with Gas blow-by to drain seal drum and potential damage to drum

TAG # :

0x-LLT-XXX

Required SIL :

SIL 1

Demand rate on SIS :

Low demand

Test interval :

1 year (to be confirmed by SIL verification)

Response Time :

Refer to general Requirements

Method :

De-energize to trip

Safe state :

Emergency Shutdown Valve (ESDV xxxx) between compressor suction scrubber and drain seal drum closed

Reset Type :

Refer to general Requirements

Nuisance Trip Req’s :

Refer to general Requirements

Special Diagnostics

Transmitter usual diagnostic by PLC

Manual Shutdown

Existing (manual control of ESDV xxxx)

Regulatory Req :

Refer to general Requirements

MTTR :

4 hours expected

Cause & Effect Diagram



EFFECT

DESCRIPTION

Close shutdown valve to drain drum




cause



TAG

07-ESDV-100



Tag

Description

Alarm Tag

Trip Point



Notes

15-L010

Suction scrubber Low Low level

15-AT-020

To be defined

X





Hazard Control Principle

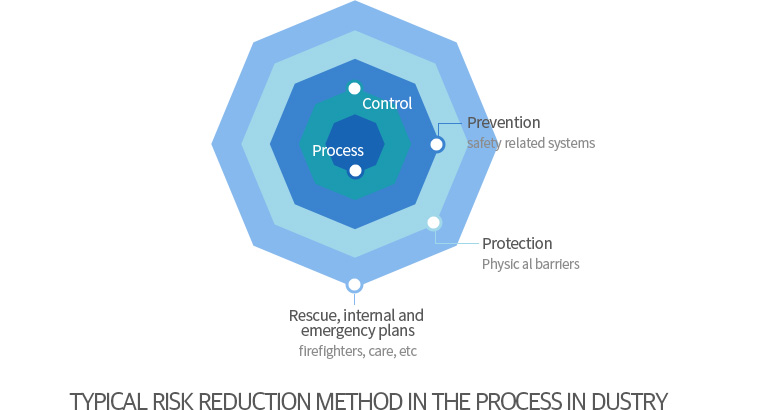

  • Hazard elimination or inherent safety.
  • Add-on safety devices(including M out of N structure)
  • Provide Warning Devices”
  • Develop Procedures and Training
    SIL Low demand mode of operation(Average probability of failure to perform its design function on demand PFD) High demand or continuous mode of operation(Probability of a dangerous failure per hour PFH)
    1 10-2 < PFD < 10-1 10-6 < PFH < 10-5
    2 10-3 < PFD < 10-2 10-7 < PFH < 10-6
    3 10-4 < PFD < 10-3 10-8 < PFH < 10-7
    4 10-5 < PFD < 10-4 10-9 < PFH < 10-8
    • PFD(Probability of Failure per Demand)
    • PFH(Probability of Failure per Hour)
